2 x AA Outdoor Battery Eliminator Kit

Description

Do you have an outdoor electronic device that you love but runs on 2 x AA batteries, and you’re tired of dealing with dead batteries? Well, we have a solution! We are now offering an alternative way to power your outdoor electronic devices that use 2 x AA batteries! This 2 x AA Outdoor Battery Eliminator Kit is used to replace real AA batteries in outdoor electronic devices that use 2 x AA batteries. Perfect for use in outdoor electronic devices that are heavily used or left on for extended periods of time. This 2 x AA Outdoor Battery Eliminator Kit includes 1 x AA Outdoor Active Dummy Cell Battery and 1 x AA Passive Dummy Cell Battery. The Thin Flat Flexible Cable (FFC cable) coming out of the AA Outdoor Active Dummy Cell Battery can be run around the side of most battery compartment covers that have waterproof gaskets, so the original level of waterproofness can still be maintained! Also, the connector at the end of the FFC cable is a waterproof 5.5mm x 2.1mm male barrel plug with M12-1.75 screw threads. This connector will mate with our outdoor power extension cables and outdoor power splitter cables keeping your connections protected! This connector will also mate with regular indoor 5.5mm x 2.1mm male barrel plugs, but the connection won’t be waterproof, so outdoor electrical tape or adhesive-lined heat-shrink tubing can be used to protect this connection. So, stop braving the elements to change out dead batteries and start saving money! Stop worrying about whether your outdoor electronic device is turned off or in the timer mode! Outdoor Battery Eliminator Kits are here to save you the hassle, the time, and the money associated with constantly changing out dead batteries in your favorite battery powered outdoor electronic devices!

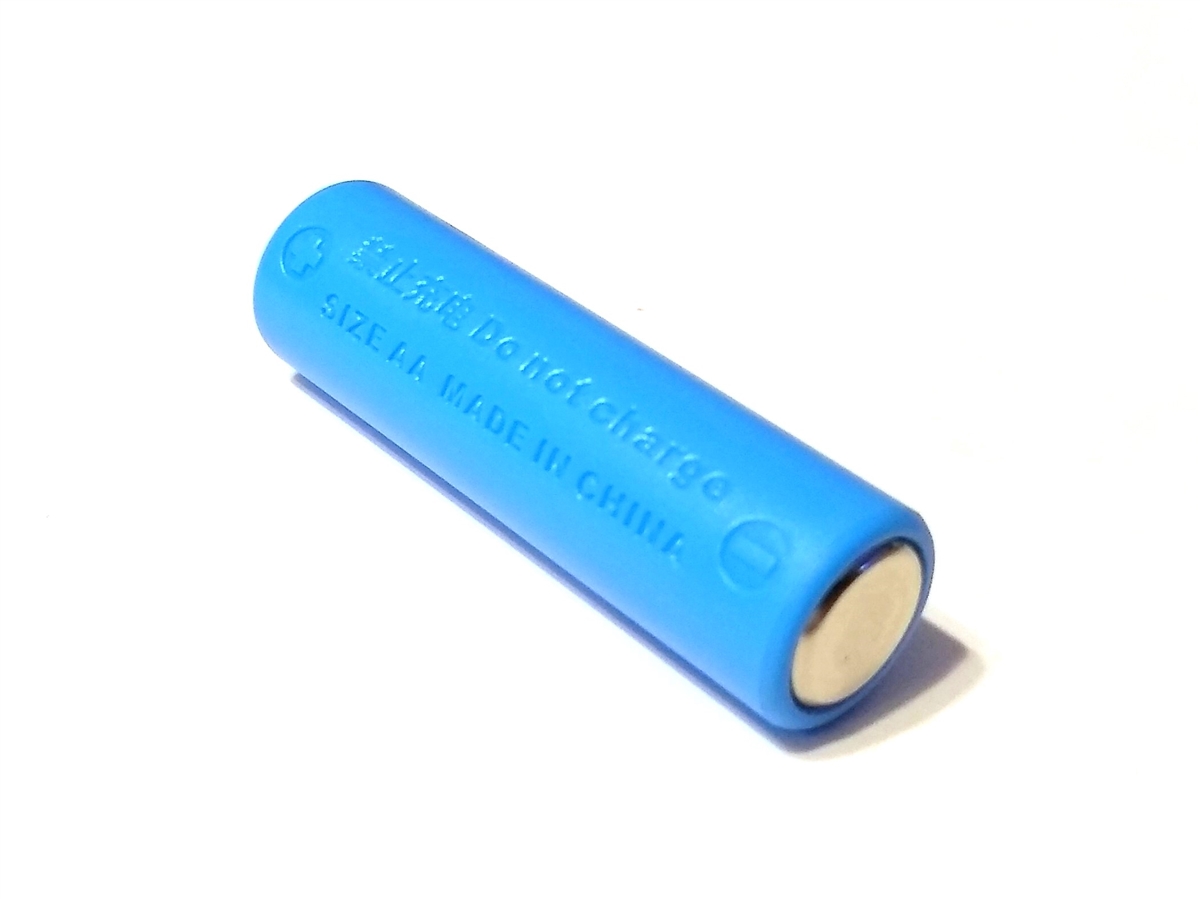

The AA Dummy Cell Batteries included in this kit are the same size as regular AA batteries, so they easily fit into the outdoor electronic device's battery compartment spaces. It doesn't matter which space they go into as long as you observe the correct polarities just as you would when inserting real batteries. The thin flat flexible cable (FFC cable) coming out of the AA Outdoor Active Dummy Cell Battery can easily be run around the side of most battery compartment covers that have waterproof gaskets, so the original battery compartment cover and gasket can still be used while maintaining a waterproof seal!

Don't forget to check out our outdoor battery eliminator components and accessories such as our Rechargeable Solar Panels, Outdoor AC to DC Power Adapters, Outdoor Power Extension Cables, Outdoor Power Splitter Cables, Outdoor Active Dummy Cell Batteries, Passive Dummy Cell Batteries, Cable Ground Stakes, Adhesive Lined Heat-Shrink Tubing, etc.

NOTES:

· The AA Outdoor Active Dummy Cell Battery and AA Passive Dummy Cell Batteries are not real batteries and will not power an electronic device on its own. They need to be used in conjunction with an appropriate AC to DC power adapter or solar panel as discussed above and depicted in the diagrams.

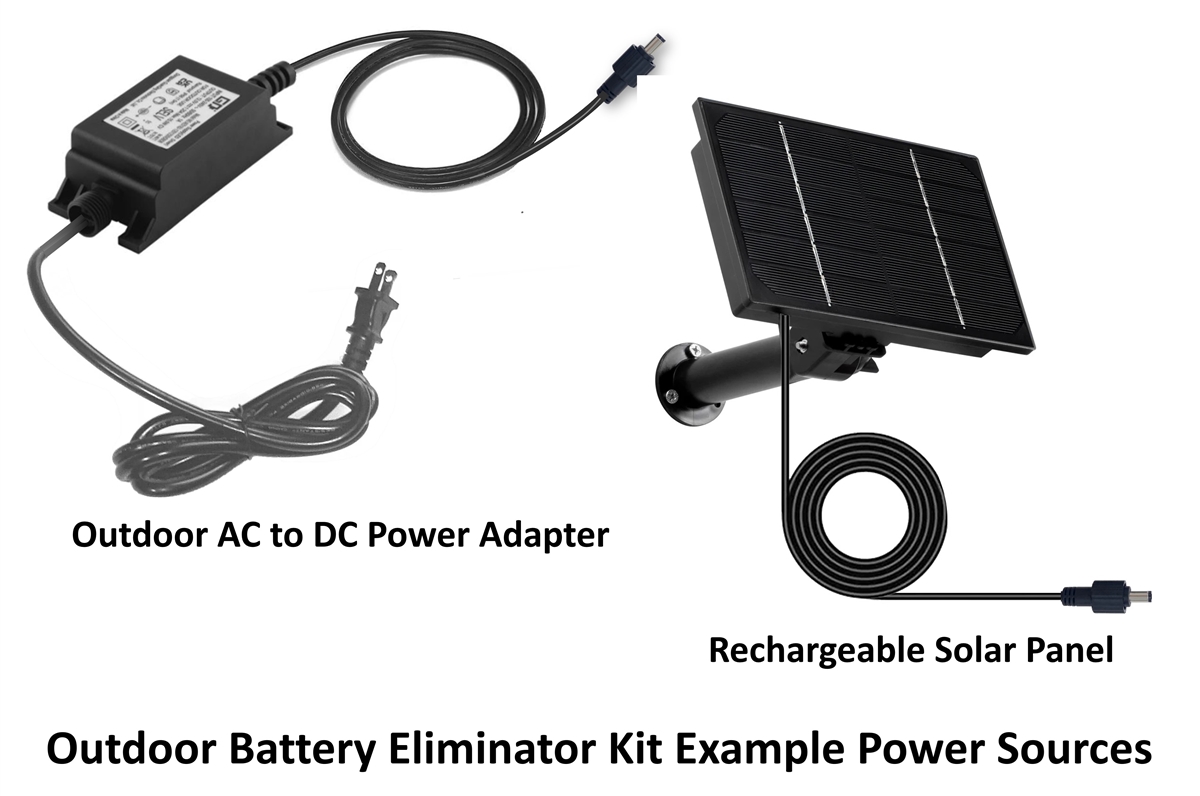

· This kit does not contain a power source, so that will need to be purchased separately. We offer 3.3VDC output voltage rechargeable solar panels that can be used as the power source and has the appropriate waterproof connector that will mate with the waterproof connector on the AA Outdoor Active Dummy Cell Battery. We also offer indoor and outdoor AC to DC power adapters. Our indoor AC to DC wall power adapters can be used as the power source provided the adapter isn’t exposed to the outdoor elements such as water, rain, dirt, etc. Also, the connection between the indoor AC to DC wall power adapter’s 5.1mm x 2.1mm male barrel plug and the AA Outdoor Active Dummy Cell Battery’s female barrel socket will need to be made waterproof by using outdoor electrical tape or adhesive-lined heat-shrink tubing.

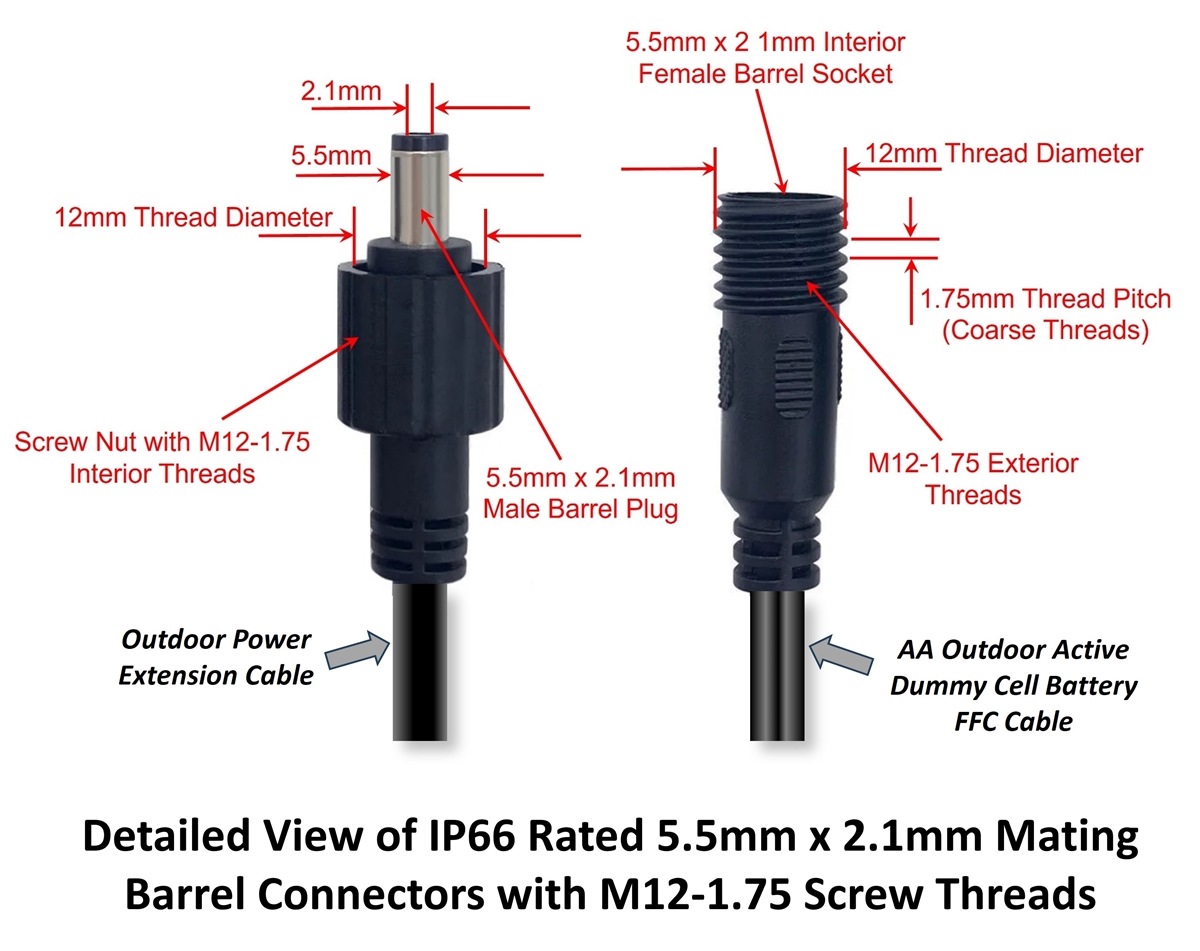

· Please make sure the mating connector used with the Outdoor AA Active Dummy Cell Battery has M12-1.75 screw threads. M12 specifies the diameter of the threads as 12mm (refer to illustrations), and 1.75 specifies the pitch of the screw threads as 1.75mm and is the distance between threads in mm (refer to illustrations). If the mating connector does not have the same thread diameter and the same thread pitch, then the screw nut on the mating connector will not work, and the rubber O-ring on the mating connector will not be properly compressed which is necessary to create a weatherproof seal. The connector on this cable will mate with regular (non-weatherproof) 5.5mm x 2.1mm DC barrel connectors (male plugs), but the connection will not be weatherproof (water and dirt).

· Since each regular AA battery supplies 1.5VDC, 2 x AA batteries will supply 3VDC. Power sources that supply 3VDC or 3.3VDC are adequate for powering electronic devices that use 2 x AA batteries. The output current rating of the power source should be selected such that it is appropriate for the outdoor electronic device being powered. Most devices that use AA batteries, don’t require much current to operate, so power sources capable of supplying an output current of 1-Amp (or less) should be sufficient.

WARNING(S): Do not attempt to charge the AA Dummy Cell Batteries with a battery charger. Doing so may damage the battery charger.

IF YOU HAVE ANY QUESTIONS OR NEED TECHNICAL SUPPORT TO DETERMINE WHICH BATTERY ELIMINATOR KIT, REPLACEMENT PARTS OR ACCESSORIES YOU NEED, PLEASE DON'T HESITATE TO CALL OR E-MAIL US AT [email protected].

Features

· Can Be Used to Eliminate 2 x AA Batteries in Outdoor Electronic Devices That Use 2 x AA Batteries

· Same Size as a Real AA Batteries

· Great For Outdoor Electronic Devices That Are Heavily Used and Left on For Extended Periods of Time

· Works With Many Types of Battery Powered Outdoor Electronic Devices Such as Automatic & Motion Activated Sprinklers, Outdoor & Landscape Lighting, Trail & Security Cameras, Animal & Pest Deterrents, Motion and Infrared Detectors, Automatic Pet Feeders, Automatic Fish Feeders, Smart Bird Feeders, Weather Stations, Outdoor Thermometers, Water Feature Pumps, Small Pond Pumps, Seasonal Decorations, Electronic Timers, Etc.

· Kit Includes 1 x AA Outdoor Active Dummy Cell Battery, and 1 x AA Passive Dummy Cell Battery

· Can be Used in Most Outdoor Products That Have a Sealed Battery Compartment

· FFC Cable on AA Outdoor Active Dummy Cell Battery Will Fit Around Rubber Gaskets on Most Waterproof Outdoor Battery Compartment Covers While Still Maintaining a Waterproof Seal

· 11” Long Thin Flat Flexible Cable (FFC Cable) on AA Outdoor Active Dummy Cell Battery is IP66 Rated and Has 5.5mm x 2.1mm Female Barrel Socket with M12-1.75 Screw Threads

· Works With Our Rechargeable Solar Panels, Outdoor Rated AC to DC Power Adapters, Outdoor Rated Power Extension Cables, and Outdoor Rated Power Splitter Cables

· Connector Works with Regular Indoor 5.5mm x 2.1mm Male Barrel Plugs, But Connection Won’t Be Waterproof. Can Be Made Waterproof with Outdoor Electrical Tape or Adhesive-Lined Heat-Shrink Tubing
