Description
Finally, an alternative way to power your
flameless LED candles and other electronic devices that use 3 x D batteries!
This 3 x D Battery Eliminator Kit (in all white) is used to replace real D
batteries in flameless LED candles and other electronic devices that use 3 x D
batteries. For use in electronic devices that are heavily used or left on for

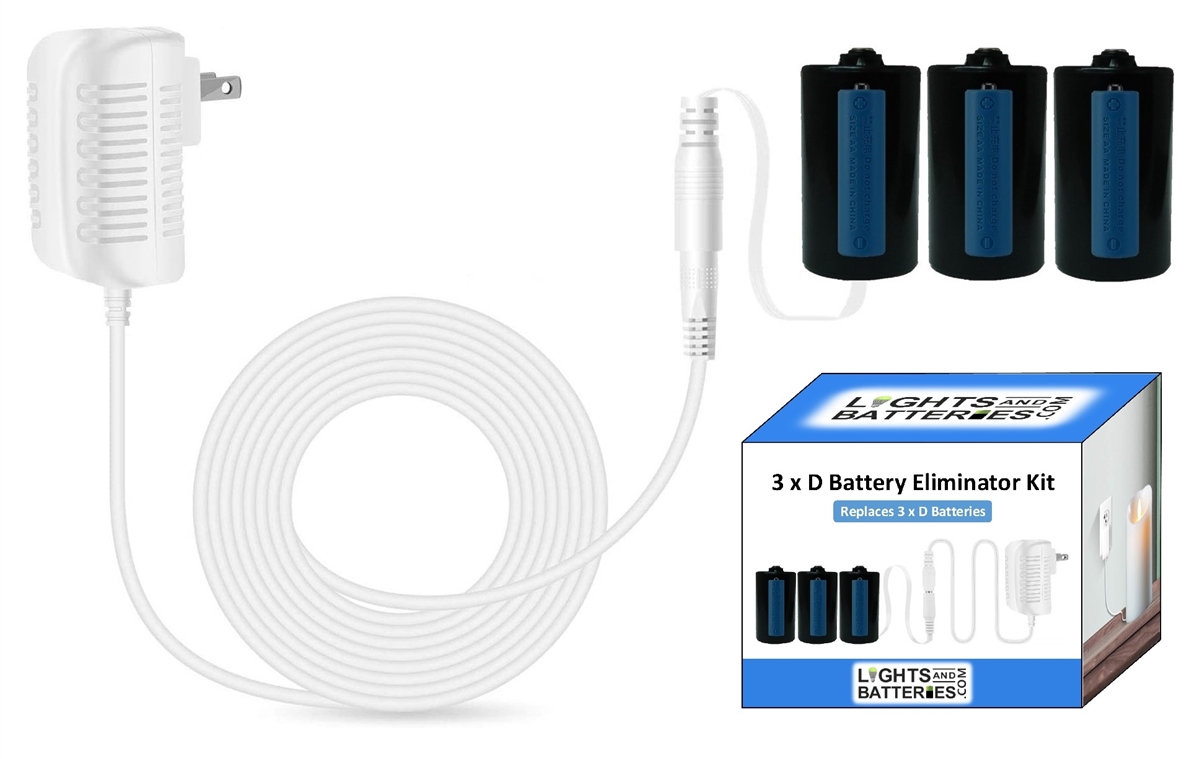

extended periods of time. This 3 x D Battery Eliminator Kit includes 1 x D
Active Dummy Cell Battery, 2 x D Passive Dummy Cell Batteries, and an AC to DC
Wall Power Adapter. All of the visible
components in this kit are in a special white color to better blend into white
or light-colored decors and neatly plug into each other for a complete "plug-and-play"
battery eliminator solution! Stop
changing out dead batteries and start saving money! Stop worrying about whether
your electronic device is turned off or in the timer mode!
The D Active and Dummy Cell Batteries included in this kit are the same size as
regular D batteries, so they easily fit into the electronic device's battery
compartment spaces. It doesn't matter which space they go into as long as you
observe the correct polarities just as you would when inserting real batteries.
The thin flat flexible cable (FFC cable) coming out of the D Active Dummy Cell
Battery can easily be run around the side of most battery compartment covers,
so the original battery compartment cover can still be used. In some cases, it
might be necessary to take a small file and file out a shallow groove in the
battery compartment cover to give the FFC cable more room to run around the
side of the cover.
The AC to DC Wall Power Adapter included in this kit is designed for use with
the included 3 x D Dummy Cell Batteries. The AC to DC Wall Power Adapter plugs
into a standard wall outlet and converts the 120VAC coming from the wall outlet
into 5VDC which is the voltage required to power electronic devices that use 3
x D batteries. Since this AC to DC Wall Power Adapter can supply up to 1A
of output current, it can power any electronic device on the market that uses 3
x D batteries.
The D Active Dummy Cell Battery FFC cable and AC to DC Wall Power Adapter cable
can easily be hidden behind furniture, plants and under table cloths, rugs,
decorative snow, etc.
Don't forget to check out our Battery Eliminator Accessories such as Power
Extension Cables, Power Splitter Cables, additional Active and Passive Dummy
Cell Batteries, and Slim-Line AC to DC Wall Power Adapters for use in tight
spaces and power strips.
NOTE: The D Active Dummy Cell Battery and D Passive Dummy Cell Batteries are
not real batteries and will not power an electronic device on its own. They
need to be used in conjunction with the included AC to DC Wall Power Adapter as
discussed above and depicted in the included diagram.
NOTE: Since each regular D battery supplies 1.5VDC, three D batteries will
supply 4.5VDC. The included AC to DC Wall Adapter supplies an output voltage of
5VDC which is within the acceptable range required by electronic devices that
use 3 x D batteries.
NOTE: The D Active Dummy Cell Battery is made
of an AA Active Dummy Cell Battery and a hollow plastic D cell battery dummy
case. The AA Active Dummy Cell Battery simply slides into the hollow plastic D
cell battery dummy case as shown in the pictures. The hollow plastic D cell
battery dummy case essentially serves as a AA to D battery size converter, so
it will properly fit in the electronic device's battery compartment.
NOTE: The D Passive Dummy Cell Batteries are made of AA Passive Dummy Cell
Batteries and hollow plastic D cell battery dummy cases. The AA Passive Dummy
Cell Batteries simply slide into the hollow plastic D cell battery dummy cases
as shown in the pictures. The hollow plastic D cell battery dummy cases
essentially serve as AA to D battery size converters, so they will properly fit
in the electronic device's battery compartment.
WARNING(S): Do not attempt to charge the D
Dummy Cell Batteries with a battery charger. Doing so may damage the battery
charger.
IF
YOU HAVE ANY QUESTIONS OR NEED TECHNICAL SUPPORT TO DETERMINE WHICH BATTERY
ELIMINATOR KIT, REPLACEMENT PARTS OR ACCESSORIES YOU NEED, PLEASE DON'T
HESITATE TO CALL OR E-MAIL US AT [email protected].
Features
· Can Be
Used to Eliminate 3 x D Batteries in Flameless LED Candles and Other Electronic
Devices That Use 3 x D Batteries
· Easy to
Use "Plug-and-Play" Kit
· Perfect
For Flameless LED Candles and Other Electronic Devices That Are Heavily Used
and Left on For Extended Periods of Time
· Kit Includes
1 x D Active Dummy Cell Battery, 2 x D Passive Dummy Cell Batteries, 120VAC to 5VDC@1A
Wall Power Adapter
· Thin Flat
Flexible Cable (FFC Cable) Coming Out of Active Dummy Cell Battery Easily Runs
Around Battery Compartment Cover and Under Electronic Device Without Causing it
to Tilt or Not Sit Flat
· Power
Cables Can Easily Be Hidden Behind Furniture & Plants, Under Rugs & Tablecloths,
Around Plants & Other Objects, Under Decorative Snow, Etc.
· Works
With Our Power Eliminator Kit Accessories Such as Power Extension Cables, Power
Splitter Cables, Space Saving Slim-Line AC to DC Wall Power Adapters,
Additional Active and Passive Dummy Cell Batteries
· FFC Cable
Coming Out of Active Dummy Cell Battery Has 5.5mm x 2.1mm Barrel Socket at End
That Mates with Barrel Plug at End of AC-DC Wall Power Adapter Cable
· Blue AA
Active and Passive Dummy Cell Batteries Slide into Black AA to D Size
Converter Dummy Cell Battery Cases
· All of
the Visible Components in This Kit are in a Special White Color to Better Blend
into White or Light-Colored Backgrounds
Specifications
Manufacturer
|
Made in China for LightsandBatteries.com,
LLC
|
Part Number
|
3D-ELIMINATOR-KIT-WHITE
|
UPC Code
|
00850036828167
|
Eliminates
|
3 x D
Batteries
|
D Active Dummy Cell Battery
|
· Cable
Dimensions (Length x Width x Thickness): 7.87" x 0.20" x 0.00787"
(200mm x 5.08mm x 0.2mm)
· Cable
Type: Thin Flat Flexible Cable (FFC Cable)
· Wire
Gauge: 24AWG Equivalent
· Connector
Type: 5.5mm x 2.1mm Barrel Socket
· Connector
Polarity: (+) Tip/Inner Conductor, (-) Ring/Outer Conductor
· Housing
Dimensions (Length x Diameter): 2.245” x 1.25” (57.023mm x 31.75mm)
· Housing
Material: ABS Plastic
· Terminal
Material: Nickel-Plated Brass
· Colors:
White Cable, White Connector, Black AA to DC Converter Case, Blue AA Dummy
Cell Housing
· Blue AA
Active Dummy Cell Battery Slides into Black AA to D Size Converter Dummy
Cell Battery Case
|
D Passive Dummy Cell Batteries
|
· Internal
Connection: (+) Terminal is Connected to (-) Terminal via Conducting Pin
· Housing
Dimensions (Length x Diameter): 2.245” x 1.25” (57.023mm x 31.75mm)
· Housing
Material: ABS Plastic
· Terminal
Material: Nickel-Plated Brass
· Colors:
Black AA to D Converter Case, Blue AA Dummy Cell Housing
· Blue AA
Passive Dummy Cell Battery Slides into Black AA to D Size Converter
Dummy Cell Battery Case
|
AC to DC Wall Power Adapter
|
· Input
Voltage: 110VAC-240VAC@50Hz-60Hz
· Output
Voltage: 5VDC@1A
· Cable
Length and Type: 5-ft (1.5m) Zip Wire
· Wire
Gauge: 24AWG
· Input
Plug Type: U.S (United States) Type A Plug, 2-Pins, Unpolarized, Ungrounded
· Output
Connector Type: 5.5mm x 2.1mm Barrel Plug
· Output
Connector Polarity: (+) Tip/Inner Conductor, (-) Ring/Outer Conductor
· Housing
Size (Width x Height x Depth): 1.54" x 2.45" x 1.06" (39mm x
62.2mm x 27mm)
· Housing
Material: ABS Plastic
· Color: White
Cable, White Connector, White Housing
· Certifications:
FCC and UL Listed
|
Location Rating
|
Indoor Use
Only
|
Accessories
|
· Active
and Passive Dummy Cell Batteries
· AC to
DC Wall Power Adapters
· Power
Extension Cables
· Power
Splitter Cables
|
