Description
This OUTDOOR RATED (IP66), REGULAR-DUTY,
22AWG, 3.3-ft (1m) long DC power extension cable can handle up to 2A of current
and is great for adding additional length to your existing outdoor DC power
cables. This outdoor cable has an M12-1.75, 5.5mm x 2.1mm barrel socket at one
end of the cable and an M12-1.75, 5.5mm x 2.1mm barrel plug at the other end of
the cable. A weatherproof seal is created
by the M12-1.75 screw connectors at the ends of the cable which keeps out water
and dirt creating reliable connections. This
weatherproof seal is created by compression of the rubber O-ring on the male
connector when the connectors are firmly screwed together (refer to
illustrations). This outdoor cable works
with other M12-1.75, 5.5mm x 2.1mm barrel connectors on our outdoor rated battery
eliminator kits and outdoor accessories such as our outdoor power extension
cables, outdoor power splitter cables, outdoor active dummy cell batteries, and
our outdoor solar panels & modules.
Note(s)
Please make sure the mating connectors used
with this cable have M12-1.75 connectors.
M12 specifies the diameter of the threads as 12mm (refer to
illustrations), and 1.75 specifies the pitch of the screw threads as 1.75mm and
is the distance between threads in mm (refer to illustrations). If the mating connectors do not have the same
thread diameters and the same thread pitches, then the screw nuts will not
work, and the rubber O-rings will not be properly compressed which is necessary
to create weatherproof seals. The connectors
on this cable will mate with regular (non-weatherproof) 5.5mm x 2.1mm DC barrel
connectors (male plugs and female sockets), but the connection will not be
weatherproof (water and dirt).
Features
· OUTDOOR
RATED (IP66) Construction – M12-1.75 Screw Connectors Create Weatherproof Seals
with Other Mating M12-1.75 Screw Connectors
· REGULAR-DUTY
Construction – 22AWG Standard Wire Gauge
· Suitable
for Use in Low Power to Medium Power Loads Involving One or More Electronic Devices
· Recommended
Maximum Current Capacity of 2A
· 3.3ft (1m)
Overall Cable Length
· Has an
M12-1.75, 5.5mm x 2.1mm Male Barrel Plug at One End of the Cable and an M12-1.75,
5.5mm x 2.1mm Female Barrel Socket at the Other End of Cable

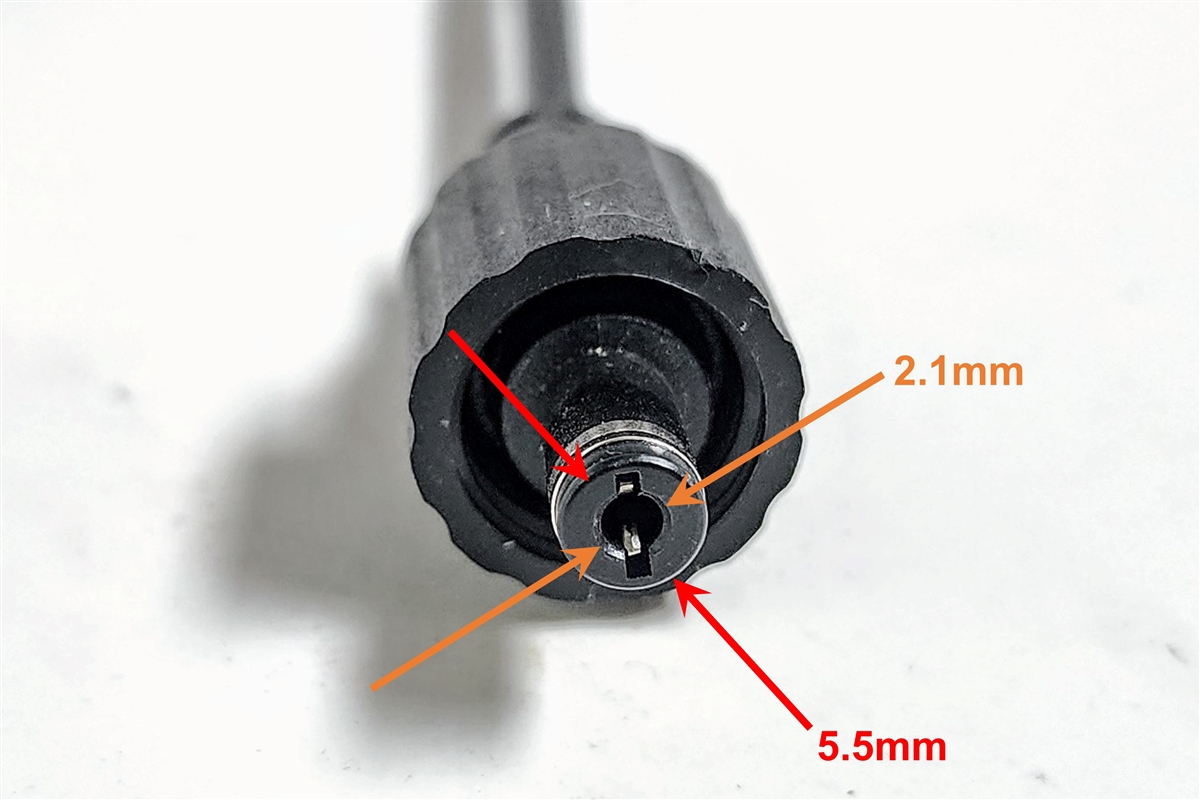

· 5.5mm x
2.1mm Male Barrel Plug Has a Rubber O-Ring and a Screw Nut with M12-1.75
Interior Threads (12mm Inside/Major Diameter and 1.75mm Thread Pitch)
· 5.5mm x
2.1mm Female Barrel Socket Has M12-1.75 Exterior Threads (12mm Outside/Major
Diameter and 1.75mm Thread Pitch)
· Works
With Outdoor M12-1.75, 5.5mm x 2.1mm Barrel Connectors on Our Outdoor Battery
Eliminators Kits and Outdoor Accessories Such as Our Outdoor Power Extension
Cables, Outdoor Power Splitter Cables, Outdoor Active Dummy Cell Batteries, and
Our Outdoor Solar Panels & Modules
· Great for
Adding Length to Existing Outdoor DC Power Cables
Specifications
|
Manufacturer
|
Made in China
|
|
Manufacturer’s Part Number
|
3P3FT-EXTENSION-CABLE-OUTDOOR
|
|
Cable Type
|
Black, 2-Conductor, Round Jacketed Cable
|
|
Cable Length
|
3.3’ (1m) Overall Cable Length (End-to-End)
|
|
Wire Gauge
|
2-Conductors,
Copper, 22AWG Stranded Each Conductor
|
|
Current Capacity
|
2A
Recommended Max
|
|
Connectors
|
· One End
- Straight 5.5mm x 2.1mm Male Barrel Plug with Rubber O-Ring and Screw Nut
with M12-1.75 Interior Threads (12mm Inside/Major Diameter and 1.75mm Thread
Pitch)
· Other
End - Straight 5.5mm x 2 1mm Female Barrel Socket with M12-1.75 Exterior
Threads (12mm Outside/Major Diameter and 1.75mm Thread Pitch)
|
|
Insulating Materials
|
· Black PVC
Insulation Material
· Black PVC
Over-Molded Connectors
|
|
Location Rating
|
Indoor & Outdoor Use – IP66 Rating
(Weatherproof – Water and Dirt)
|
|
Color
|
Black
|
|
Other
|
· Screw
Nuts Must be Firmly Tightened for Rubber O-Rings to be Properly Compressed,
so Weatherproof Seals Will Form with Compatible Mating Connectors
· Connectors
on This Cable Will Mate with Regular (Non-Weatherproof) 5.5mm x 2.1mm DC Barrel
Connectors (Male Plugs and Female Sockets), But Connection Will Not Be Weatherproof
(Water and Dirt)
|
