Description

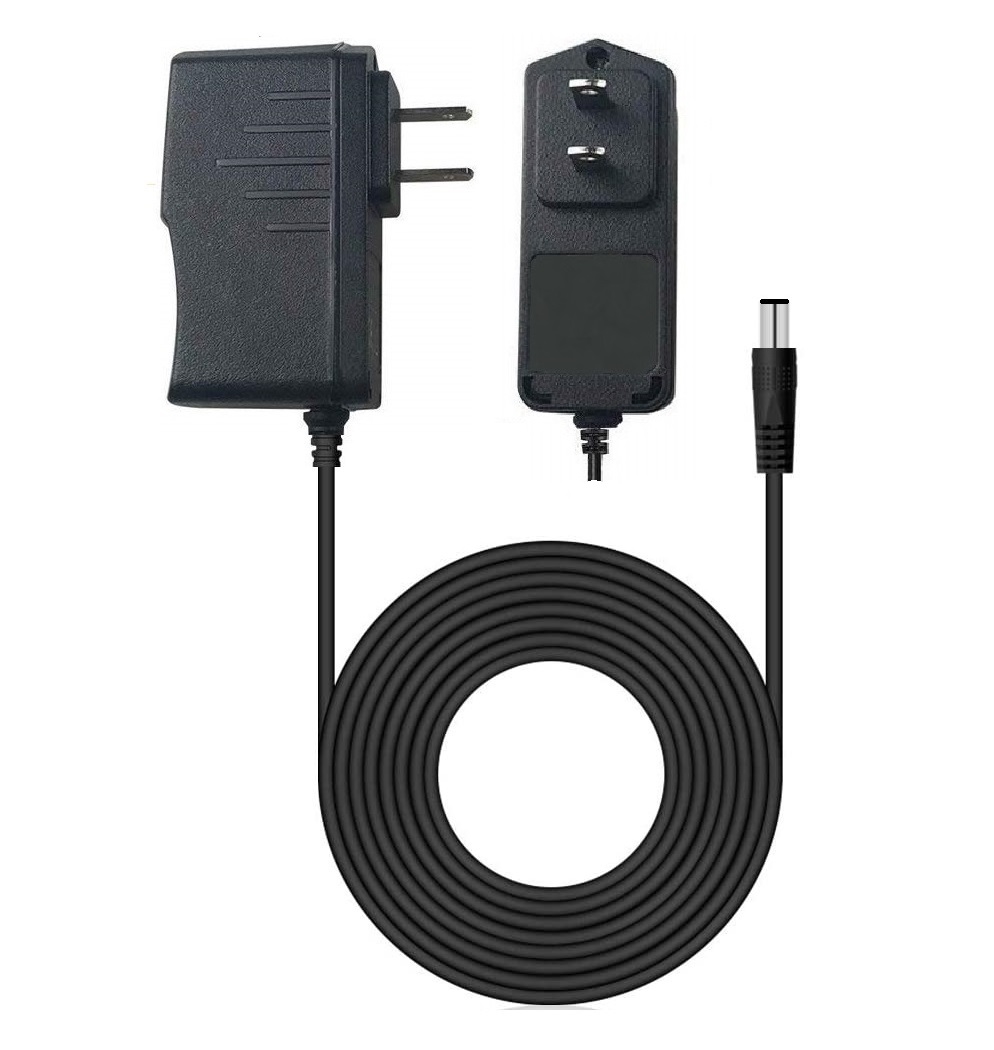

SLIM-LINE PROFILE. MEDIUM-DUTY 2A OUTPUT.
Designed for use with our battery eliminator
kits that use 4 x AAA, 4 x AA, 4 x C or 4 x D alkaline batteries. This MEDIUM-DUTY
2A OUTPUT slim-line profile AC to DC wall power adapter is compact enough to
fit into tight spaces allowing multiple adapters to be plugged into the same
outlet or power strip. This AC to DC wall power adapter plugs into a
standard wall outlet and converts 100VAC-240VAC to 6VDC @ 2A. Comes with a 3-ft
long power cable with a 5.5mm x 2.1mm barrel plug connector at the end.
Since this MEDIUM-DUTY OUTPUT AC to DC wall power adapter can supply up to 2A of output current, it can power a medium-duty load that requires up to 2A of output current. It can also power more than a single light-duty load (<1A) by purchasing additional active and passive dummy cell batteries and our optional power splitter cables (available in 2-way up through 8-way). We also sell optional power extension cables when additional cable length is required.
IMPORTANT
NOTES: This AC to DC Wall Power Adapter Converts the 120VAC coming from the
wall outlet into 6VDC which is what’s needed to supply power to your flameless
LED candles and other electronic devices that use 4 x AAA, 4 x AA, 4 x C or 4 x
D batteries. A regular alkaline battery supplies about 1.5VDC, so 4
batteries supply about 6VDC, so the 6VDC supplied by this power adapter is well
within the range required by electronic devices that operate on 4 alkaline
batteries. The power adapter is supplying the same power as these
batteries, and your electronic devices won’t know the difference. Our
power adapters can power more than one electronic device, so if you need to
power multiple electronic devices from a single AC to DC wall power adapter,
simply purchase the necessary active and passive dummy cell batteries, power
splitter cables, and power extension cables. 1 x active dummy cell battery
and 3 x passive dummy cell batteries are needed for each flameless LED candle
or electronic device you wish to power. This power adapter will not work with
electronic devices that use anything other than 3 alkaline batteries.
Features
· Supplies
up to 2A of Output Current for Medium-Duty Loads
· Designed
For Use with Our Battery Eliminator Kits That Use 4 x AAA, 4 x AA, 4 x C or 4 x
D Alkaline Batteries

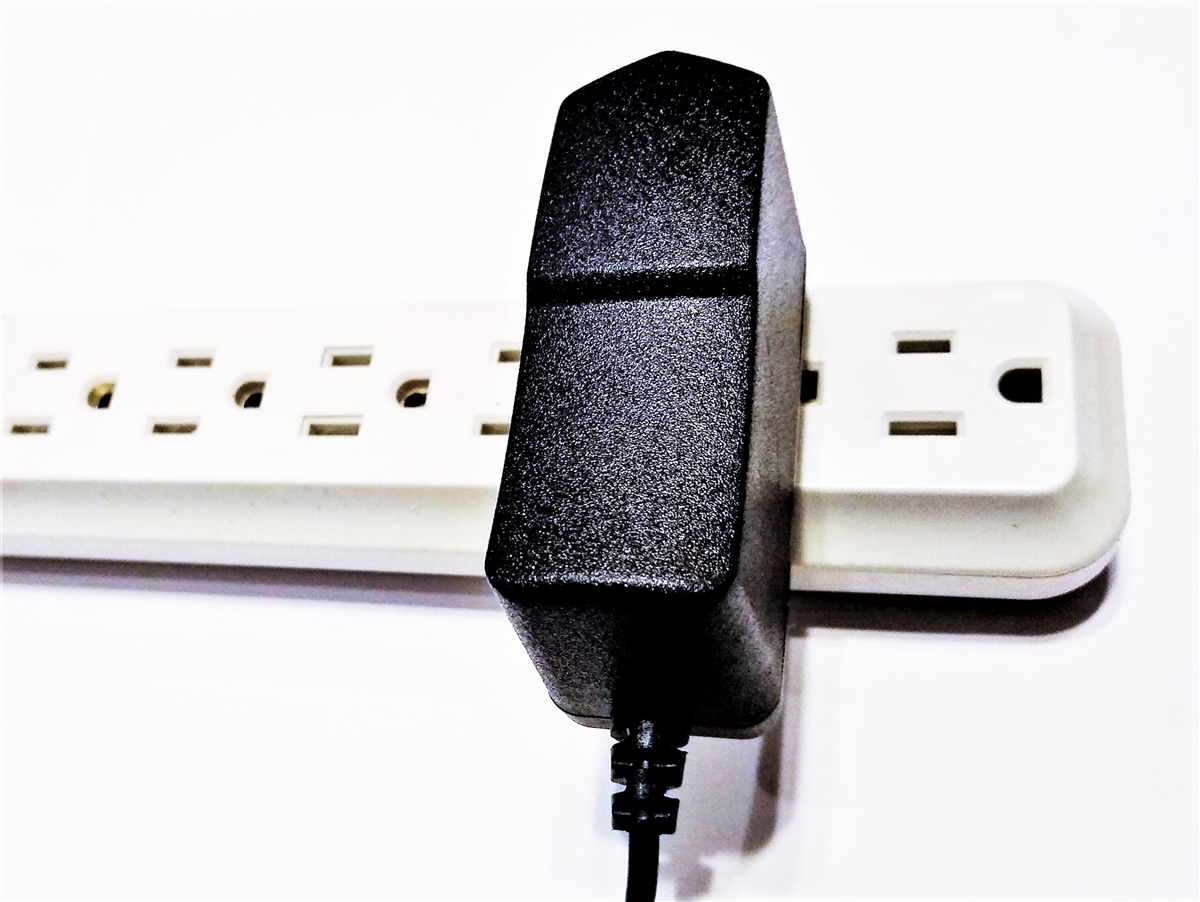

· Slim-Line
Profile Housing Allows Multiple Adapters to Be Plugged into the Same Outlet or
Power Strip
· AC to DC
Wall Power Adapter Converts 100VAC-240VAC to 6VDC @ 2A for Medium-Duty Loads
· 3-ft Long
Power Cable
· 5.5mm x
2.1mm Barrel Plug at End of Power Cable
· Can Power
More Than a Single Light-Duty Load That Uses 4 x AAA, 4 x AA, 4 x C or 4 x D
Alkaline Batteries
· Works
With Our Power Splitter Cables and Power Extension Cables (Mates With
5.5mm x 2.1mm Barrel Socket)
· Works
With Our AAA, AA, C, and D Active Dummy Cell Batteries (Mates With 5.5mm x
2.1mm Barrel Socket)
Specifications
Manufacturer
|
Made in China
|
Manufacturer’s Part Number
|
ACDC-6VDC-2A-SLP-ADAPTER
|
Input Voltage
|
100VAC-240VAC @ 50Hz-60Hz
|
Output Voltage & Current
|
6VDC @ 2A (12W) for Medium-Duty Loads
|
Output Voltage Regulation
|
NA
|
Output Voltage Ripple
|
NA
|
Input Current
|
NA
|
Conversion Efficiency
|
NA
|
Protection(s)
|
· Over-Current
· Short-Circuit
|
Ambient Operating Temperature
|
NA
|
Operating Relative Humidity
|
NA
|
Location Rating
|
Indoor Use Only
|
Housing Size (Width x Height x Depth)
|
1.05” x 2.95” x 1.83” (26.7mm x 74.9mm x 46.5mm)
|
Cable Length & Type
|
3-ft (91.44cm) 22AWG, 2-Conductor, Rounded
Jacketed
|
Connector(s)
|
· 5.5mm x
2.1mm Barrel Plug
· U.S.A.
Male 2-Prong Plug (Unpolarized)
|
Housing Material
|
ABS Plastic
|
Housing & Cable Color
|
Black
|
Weight
|
NA
|
Certification(s)
|
CE, FCC, RoHS
|
