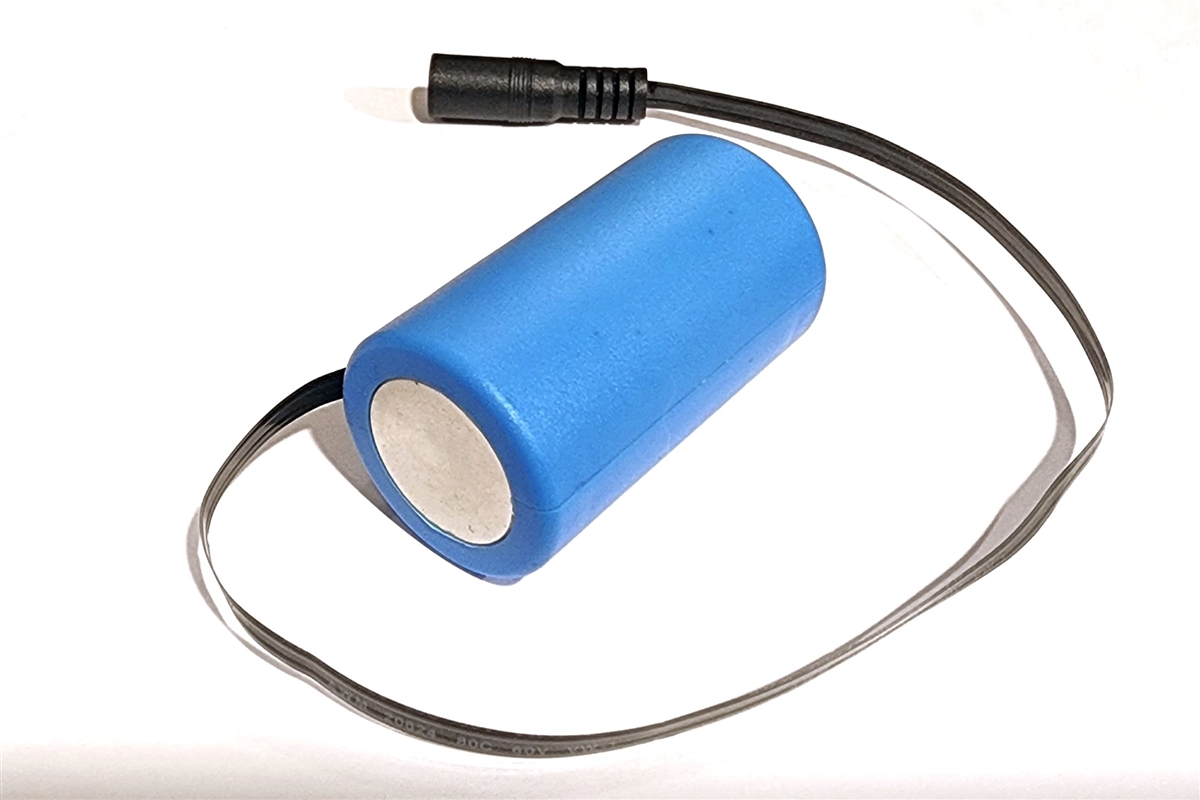

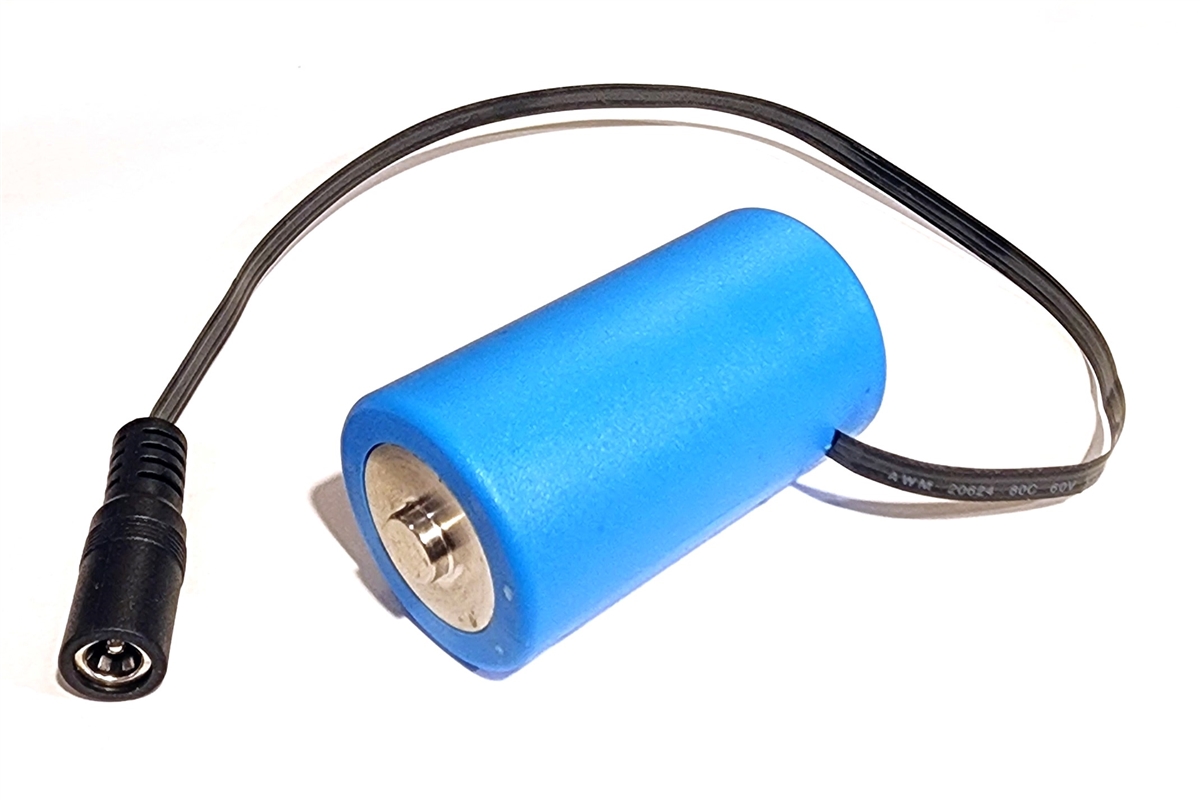

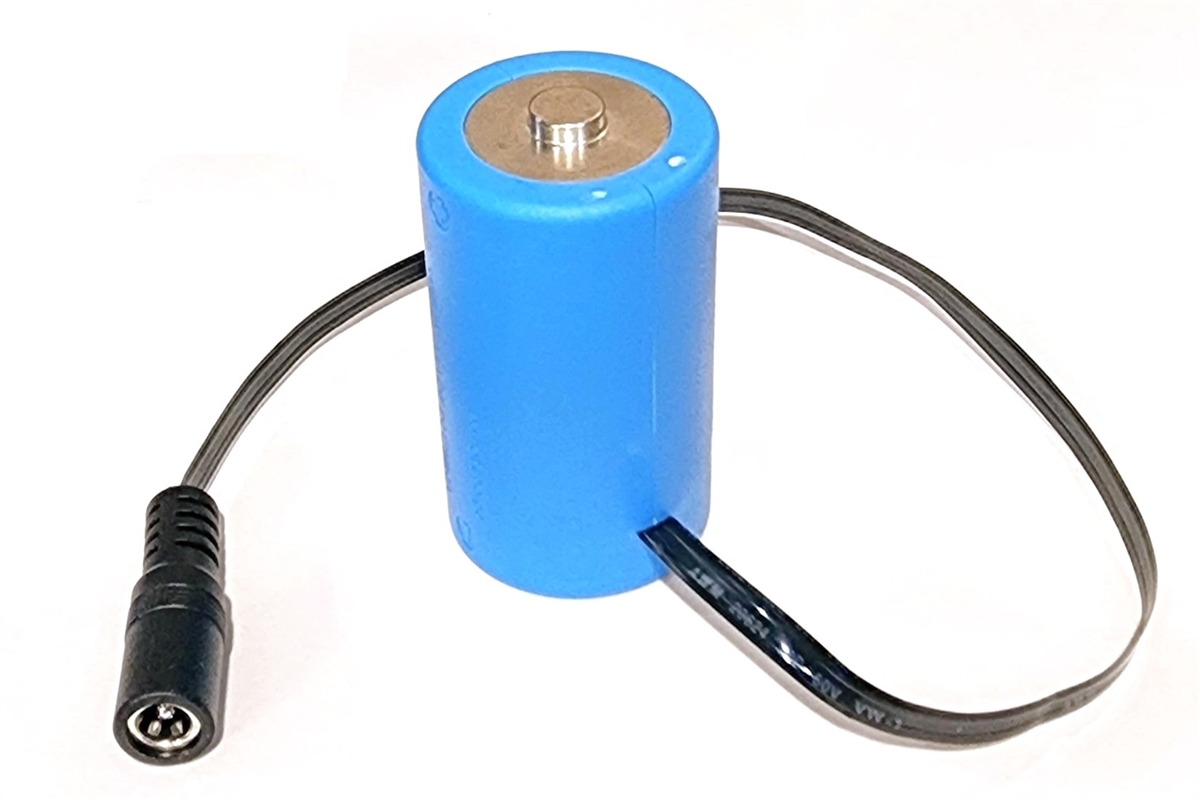

D Active Dummy Cell Battery - NEXT GENERATION - Single Component Design - 11" Thin Flat Flexible Cable - 5.5mm x 2.1mm Barrel Socket - Works with Battery Eliminator Kits

Description

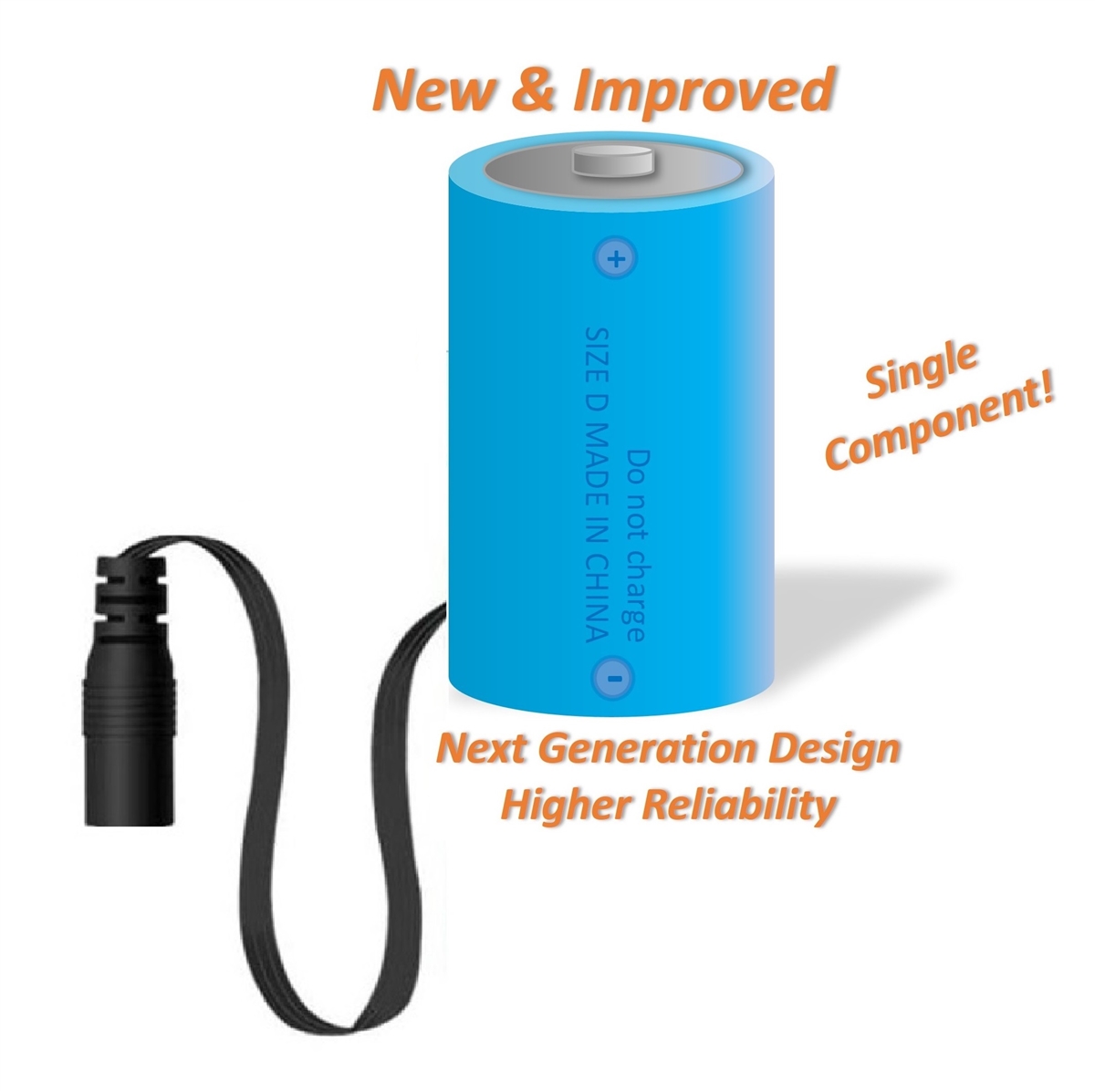

NEW & IMPROVED SINGLE COMPONENT DESIGN! This new and improved next generation D Active Dummy Cell Battery eliminates the need for the 2-component solution used in the original first-generation D Active Dummy Cell Battery resulting in a higher reliability solution. The original first-generation version is constructed of a AA Active Dummy Cell Battery that slides into a hollow plastic D cell battery dummy case. Since this new and improved next generation design is a single component, you don’t have to worry about the AA Active Dummy Cell Battery falling out of the hollow plastic D cell battery dummy case. It also means not having to worry about the positive (+) terminal of the AA Active Dummy Cell Battery making good contact with the internal positive (+) terminal of the hollow plastic D cell battery dummy case.

As with the original first-generation design, this new and improved next generation D Active Dummy Cell Battery is used to replace a real D battery in flameless LED candles and other electronic devices that use one or more D batteries. It has an 11" long thin flat flexible cable (FFC cable) with a 5.5mm x 2.1mm barrel socket at the end and works with the barrel plugs on all of our Battery Eliminator Kits and Accessories (Power Splitter Cables, Power Extension Cables, AC to DC Wall Power Adapters, etc.). Works by itself or in conjunction with our D Passive Dummy Cell Batteries and the appropriate AC to DC Wall Power Adapter to eliminate expensive batteries that are constantly having to be replaced. Please read the detailed discussion and diagram for the components that make up a complete Battery Eliminator solution. Stop changing out dead batteries and start saving money with our battery eliminator kits & accessories!

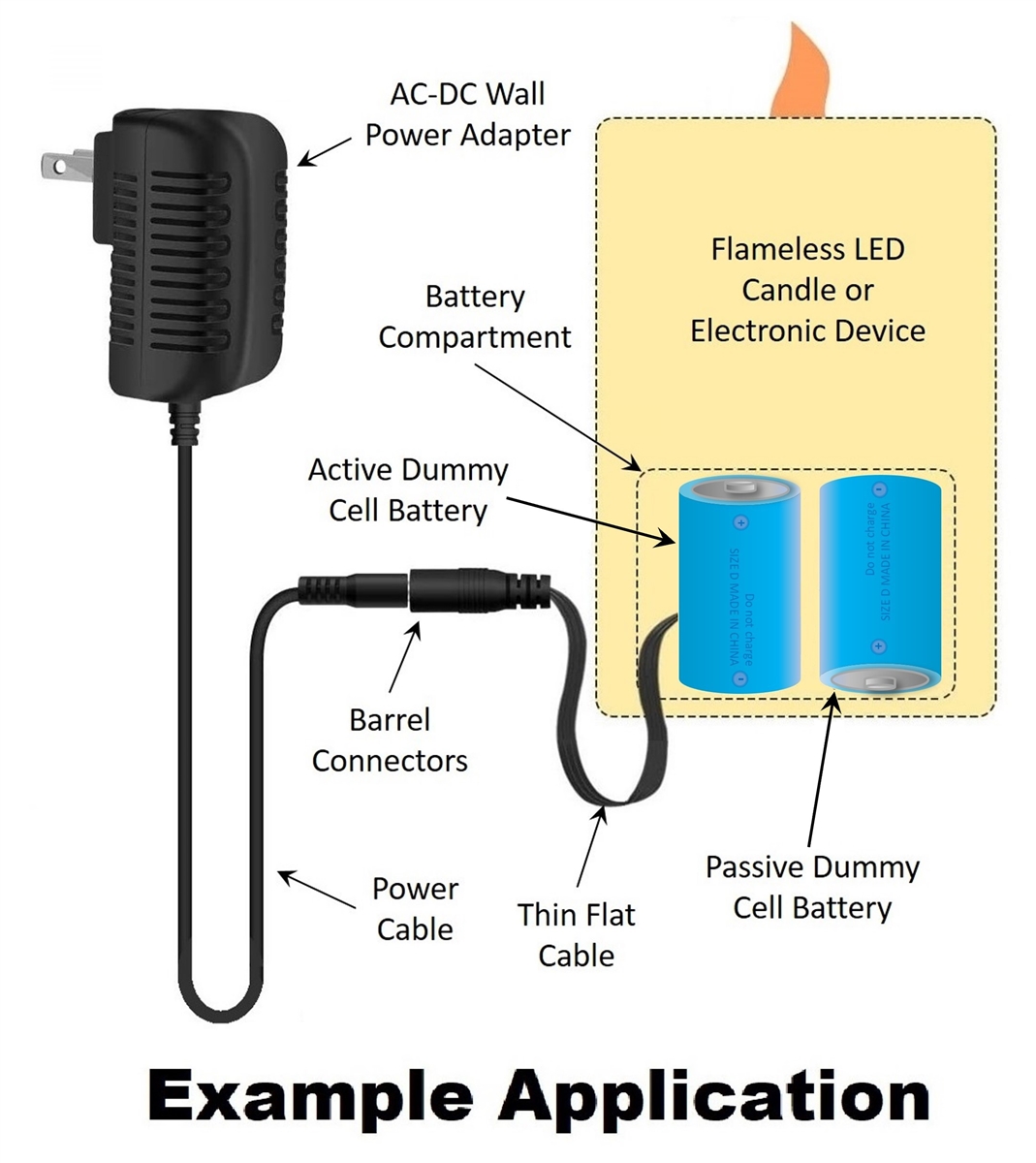

This new and improved next generation D Active Dummy Cell Battery is one component of an overall Battery Eliminator solution which consists of a D Active Dummy Cell Battery (this part or D-DUMMY-ACTIVE), one or more D Passive Dummy Cell Batteries (D-PASSIVE-DUMMY or D-PASSIVE-DUMMY-NG - quantity depends on the number of regular batteries required by the electronic device), and an AC to DC Wall Power Adapter (DC output voltage depends on the number of batteries used by the electronic device). The tip/inner conductor of the barrel socket goes to the (+) terminal of the D Active Dummy Cell Battery, and the ring/outer conductor of the barrel socket goes to the (-) terminal of the D Active Dummy Cell Battery. This internal connection is needed to complete the circuit necessary in the electronic device when used by itself or in conjunction with our D Passive Dummy Cell Batteries.

This D Active Dummy Cell Battery is the same size as a real D battery, so it fits in one of the battery spaces in the battery compartment. It doesn't matter which space it goes into as long as the correct polarity is still observed as with regular batteries. The FFC cable can easily be run around the side of most battery compartment covers, so the original battery cover can still be used. In some cases, it might be necessary to take a small file and file out a shallow groove which gives the flat cable a little bit more room to run around the side of the battery cover.

As an example, suppose you want to eliminate 2 x D batteries, you will need 1 x D Active Dummy Cell Battery (this component), 1 x D Passive Dummy Cell Battery, and an AC to DC Wall Power Adapter that supplies the appropriate power for electronic devices that use 2 x D batteries. Since each regular D battery supplies 1.5VDC, 2 x D batteries will supply 3VDC, so you would need an AC to DC Wall Power Adapter that supplies an output voltage around 3VDC (3.3VDC is also acceptable).

As another example, suppose you want to eliminate 3 x D batteries. You will need 1 x D Active Dummy Cell Battery (this component), 2 x D Passive Dummy Cell Batteries (this component) and an AC to DC Wall Power Adapter that supplies the appropriate power for electronic devices that use 3 x D batteries. Since each regular D battery supplies 1.5VDC, 3 x D batteries will supply 4.5VDC, so you would need an AC to DC Wall Adapter that supplies an output voltage around 4.5VDC (5VDC is also acceptable).

NOTE(S): This is not a real battery and will not power an electronic device on its own. It needs to be used in conjunction with the other necessary components that make up a complete Battery Eliminator solution as discussed above and depicted in the included diagram.

IF YOU HAVE ANY QUESTIONS OR NEED TECHNICAL SUPPORT TO DETERMINE WHICH COMPONENTS YOU NEED, PLEASE DON"T HESITATE TO CALL OR E-MAIL US at [email protected].

Features

· New and Improved Next Generation Design Results in a Higher Reliability Solution

· No More Worring About the AA Active Dummy Cell Battery Falling Out of the Hollow Plastic D Cell Battery Dummy Case

· Eliminates the Problematic Connection Between the Positive (+) Terminal of the AA Active Dummy Cell Battery and the Internal Positive (+) Terminal of the Hollow Plastic D Cell Battery Dummy Case

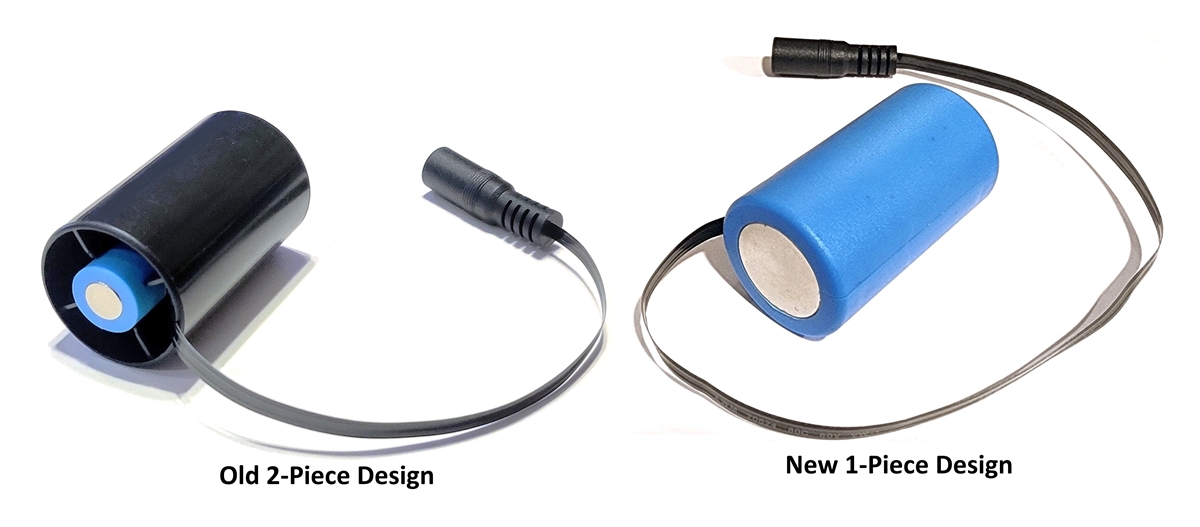

· Single Component Design - Upgrade to Original First-Generation Design Which uses 2 Components (AA Active Dummy Cell Battery + Hollow Plastic D Cell Battery Dummy Case)

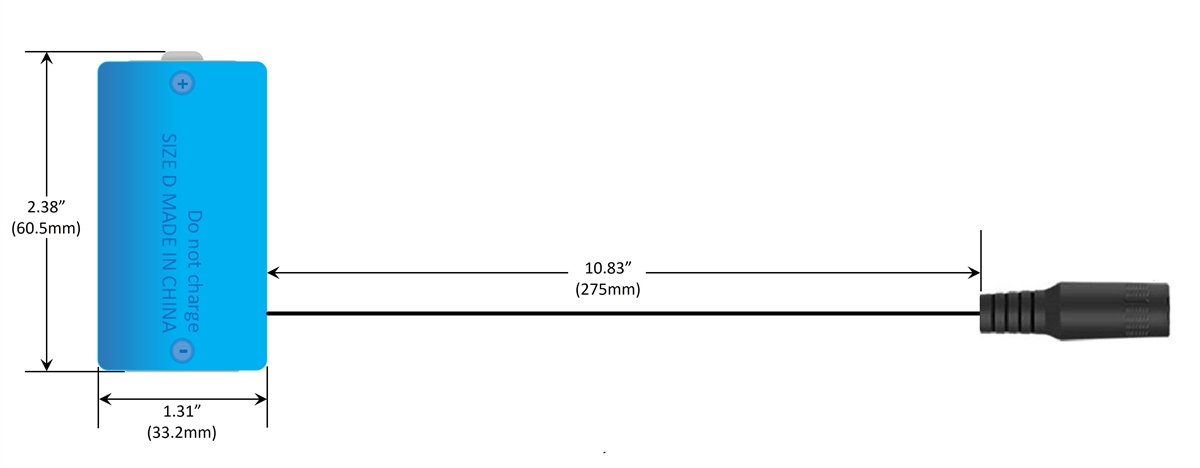

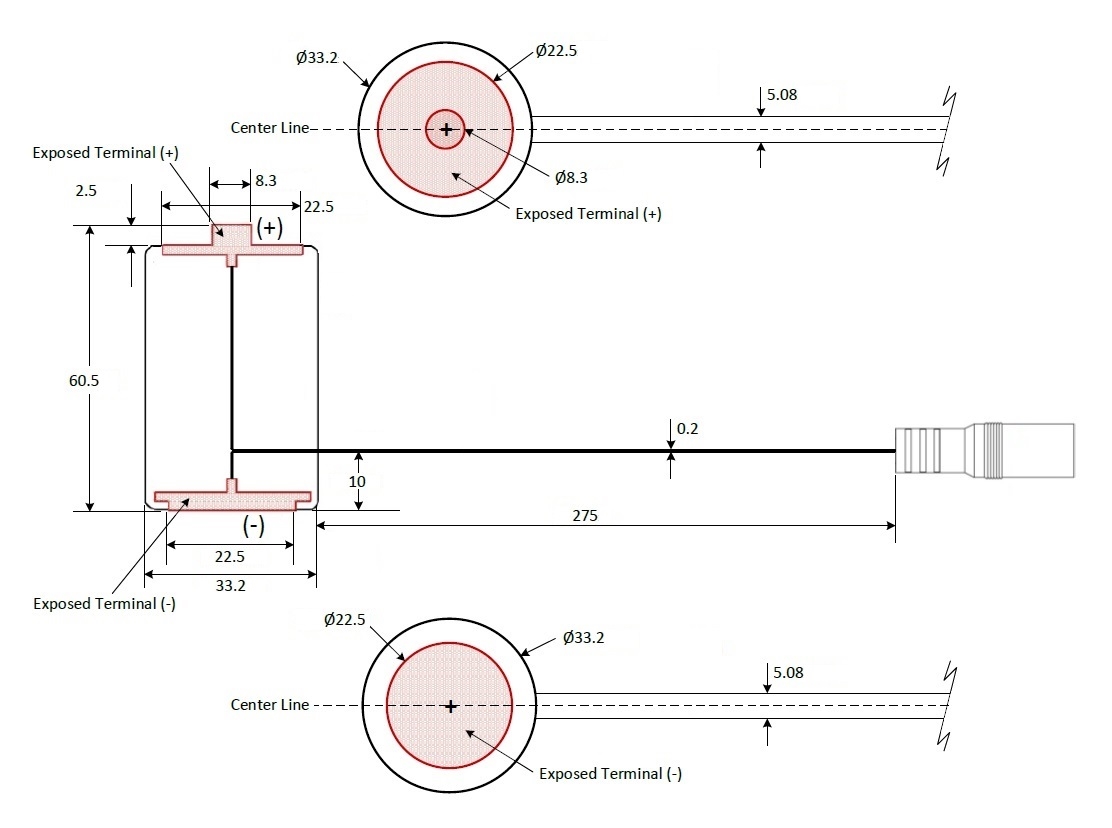

· Same Size as a Real D Battery

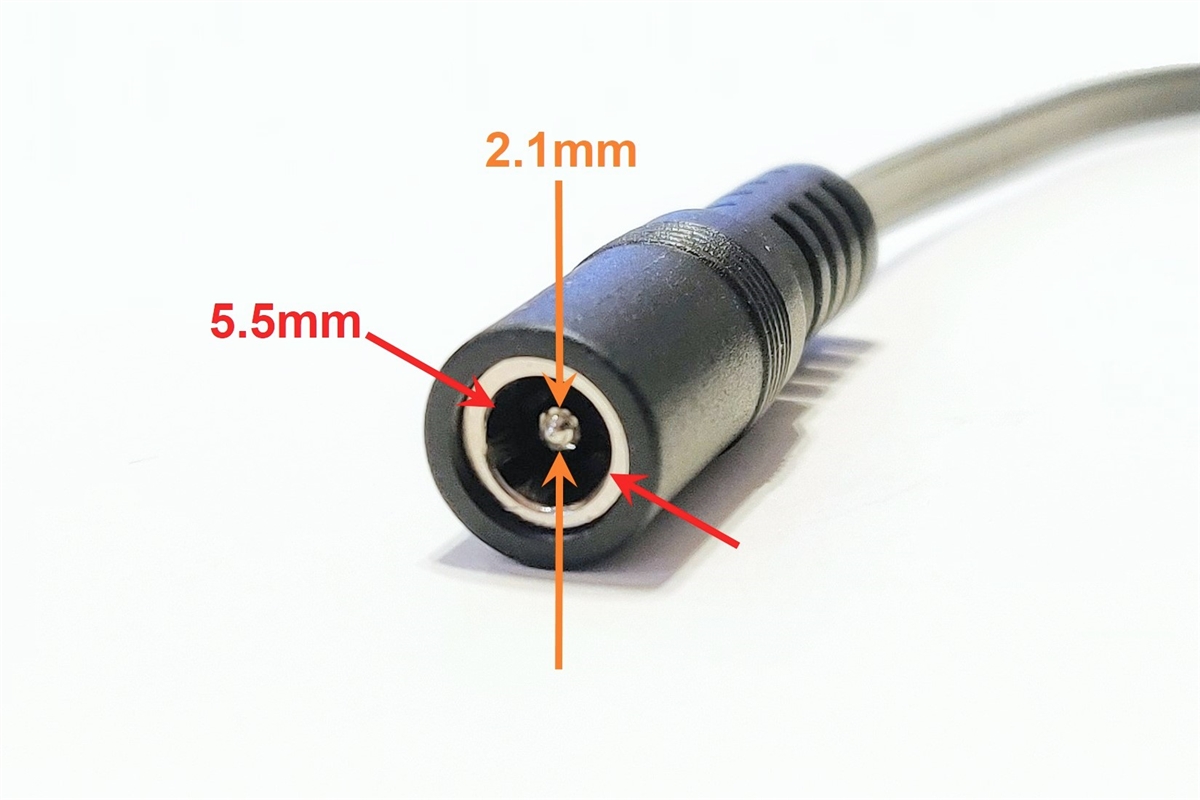

· 11” Long Thin Flat Flexible Cable (FFC Cable) with 5.5mm x 2.1mm Barrel Socket at End

· Thin Flat Flexible Cable (FFC Cable) is constructed of 2 x 22AWG Heavier Gauge Conductors to Handle Larger Load Currents

· FFC Cable Will Fit Around Most Battery Compartment Covers and Under Electronic Device Allowing it to Sit Flat Without Tilting

· Works With Barrel Plugs on all of Our Battery Eliminators Kits and Accessories (Power Splitter Cables, Power Extension Cables, AC to DC Wall Power Adapters, Etc.)

· (+) Terminal is Internally Connected to Tip/Inner Conductor of Barrel Socket, and (-) Terminal is Internally Connected to Ring/Outer Conductor of Barrel Socket in Order to Complete Circuit Necessary to Supply Power to an Electronic Device

· Works by Itself or in Conjunction with Our D Passive Dummy Cell Batteries and the Appropriate AC to DC Wall Power Adapter to Supply Power to an Electronic Device in Lieu of Expensive Batteries

· One Component That Forms a Complete Battery Eliminator System

· Part of a Battery Eliminator System That's Perfect for Flameless LED Candles and Other Electronic Devices That Are Heavily Used and Left on For Extended Periods of Time
