Description

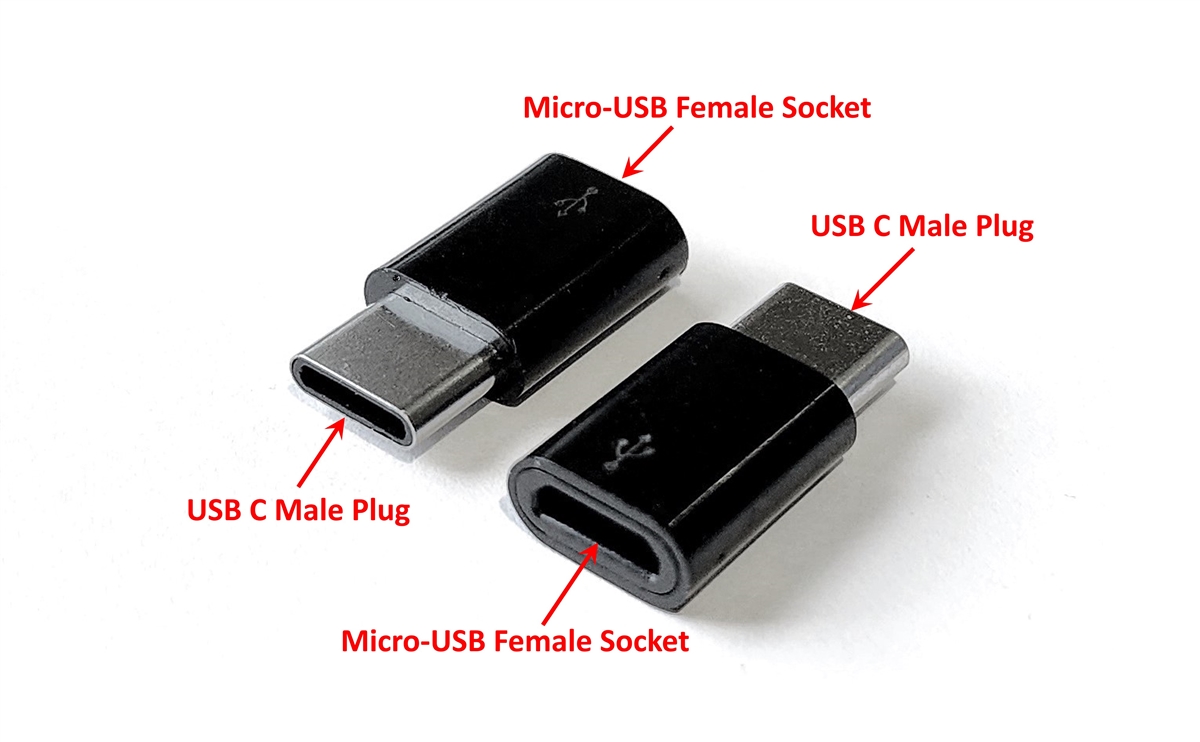

This connector adapter has a USB C male plug
on one end and a micro-USB female socket at the other end. This adapter is used
to convert a micro-USB male plug to a USB C male plug. Great for converting a micro-USB male plug on
a power source such as an AC/DC wall power adapter (see WARNING) to a USB C male

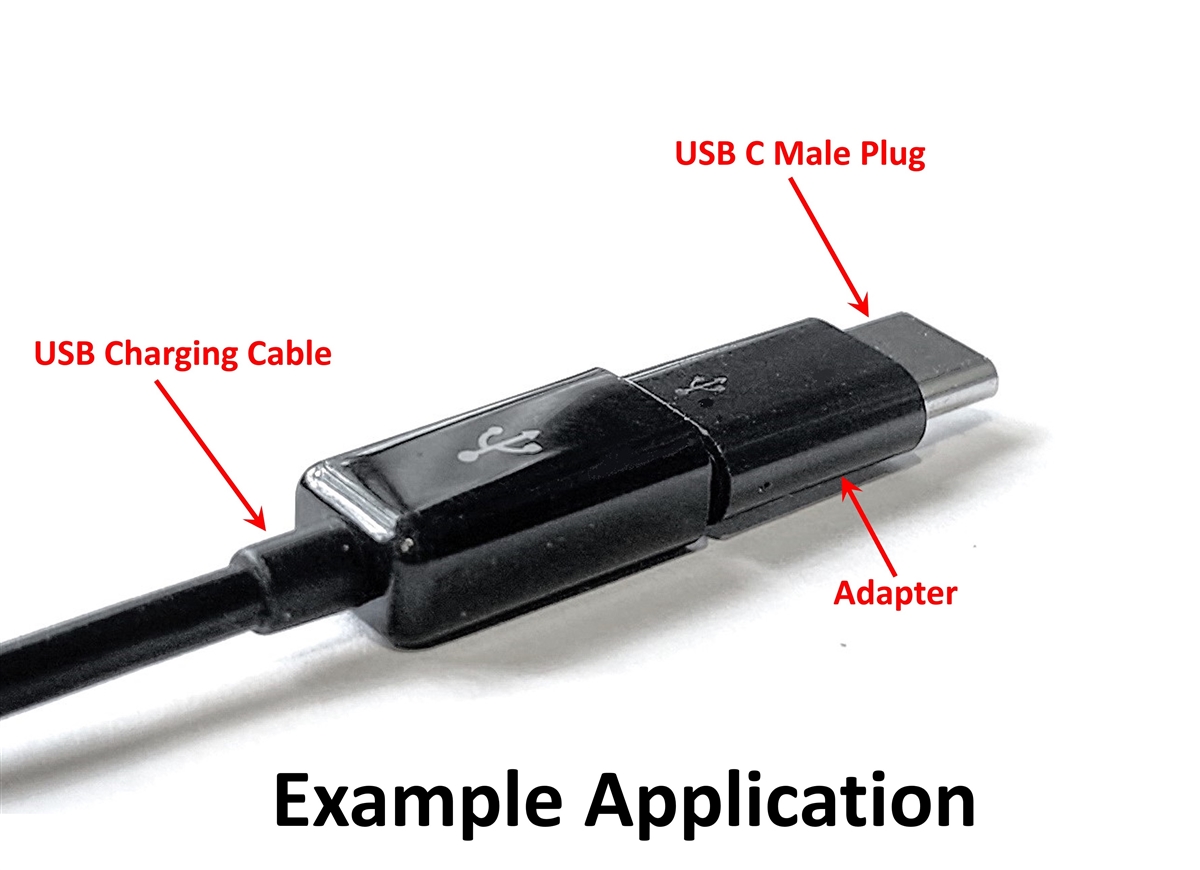

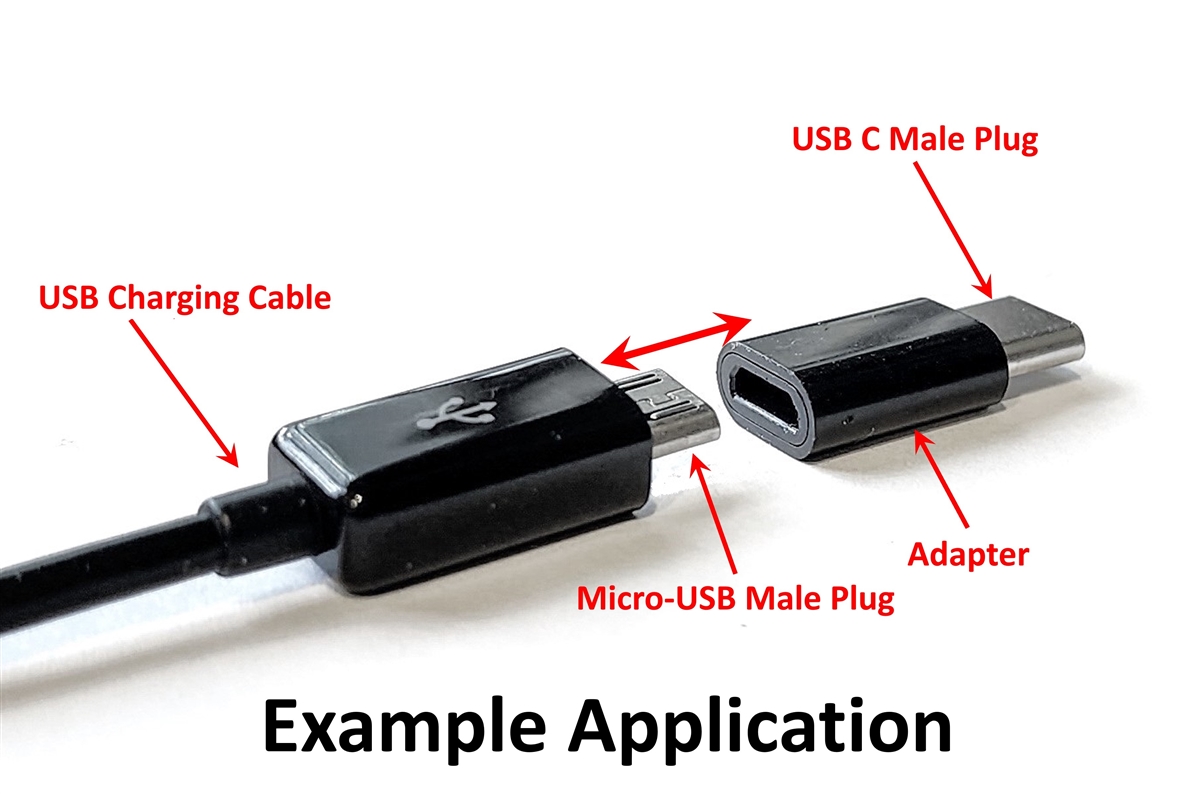

plug. See pictures for an illustration
of a typical application. This connector
adapter supports power and USB 2.0 data transmission rates (480Mbps).
WARNING
USB industry standards dictate that power
supply voltages transmitted through adapters with USB connectors be +5VDC to
avoid inadvertently applying incorrect voltages to +5VDC USB powered electronic
devices. Other DC voltages can be
transmitted through this adapter such as 3.3VDC, 6VDC, 9VDC, 12VDC, etc.;
however, in this use-case, great care should be exercised to prevent the
inadvertent application of these voltages to +5VDC USB powered electronic
devices as damage to these devices might occur.
Features
· USB C Male
Plug at One End of the Adapter and Micro-USB Female Socket at the Other End of the
Adapter
· Converts
a Micro-USB Male Plug to a USB C Male Plug
· Supports
power and USB 2.0 Data Transmission Rates (480MBps)
· Great for
Converting a Micro-USB Male Plug on a Power Source Such as an AC/DC Wall Power
Adapter to a USB C Male Plug (See WARNING)
· Adapter
Can Be Used to Power Electronic Devices Other Than +5VDC USB Powered Devices
(See WARNING Above)
Specifications
|
Manufacturer
|
Made in China
|
|
Manufacturer’s Part Number
|
MICROUSBSOCKET-USBCPLUG-ADAPTER
|
|
Connectors
|
· USB C Male
Plug One End
· Micro-USB
Female Socket Other End
|
|

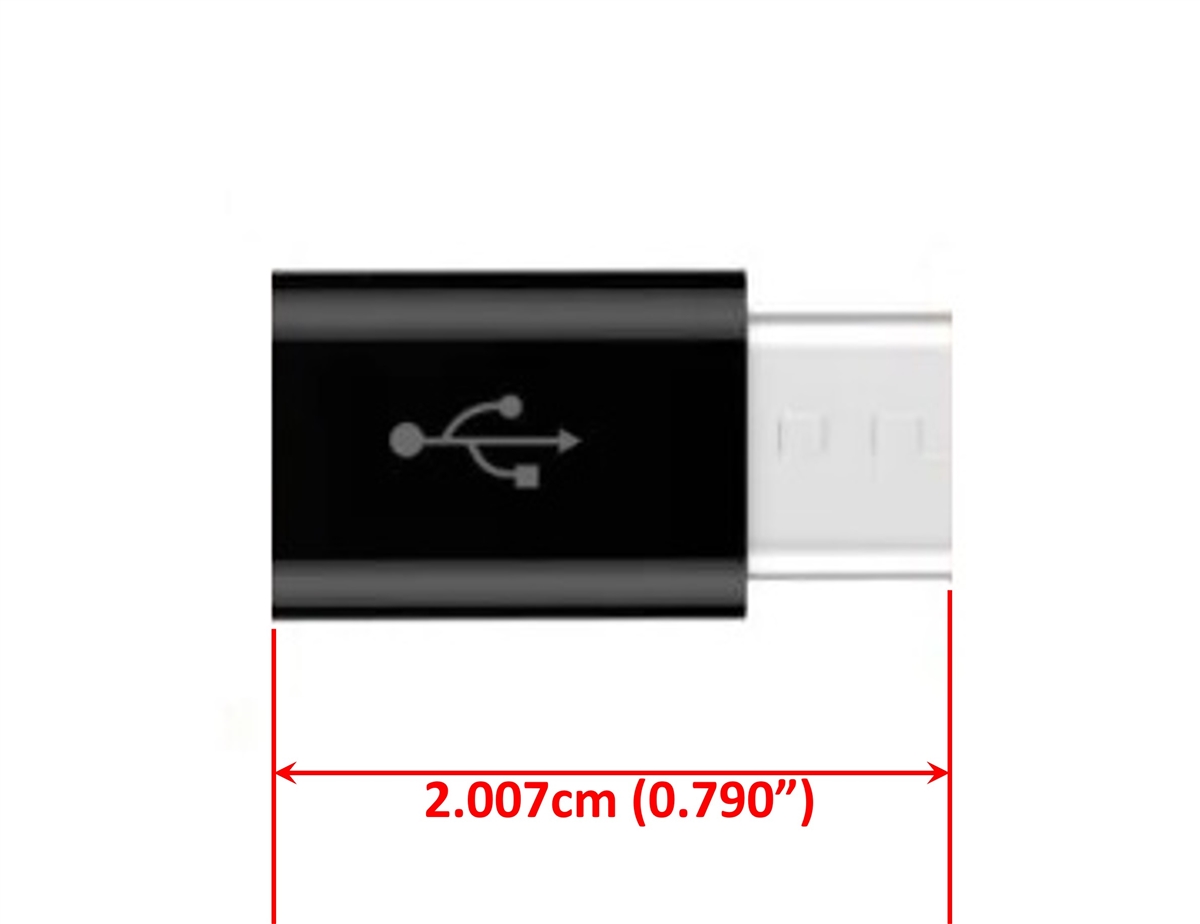

Length
|
2.007cm (0.790”)
Overall Length
|
|
Supported Current
|
3A Recommended
Maximum Current
|
|
Supported Data Transmission Rate
|
USB 2.0
(480Mbps)
|
|
Insulating Materials
|
Black PVC
Over-Molded Connectors
|
|
Location Rating
|
Indoor Use Only
|
|
Color
|
Black
|
